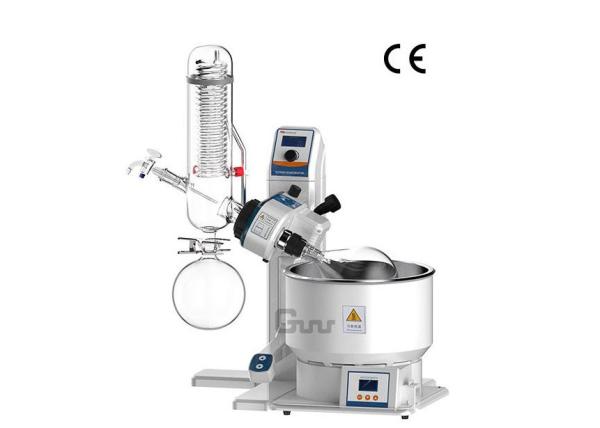

0 . 5 L/ 1 L/ 2 L Laboratory Electrical Lifting Vacuum Rotary Evaporator With CE 1~110V, 60Hz or 1~220V, 50/60Hz
Profile
Patented technology of double sealing of Teflon(PTFE) and FV rubber can ensure the negative pressure level.
- The immersion angle of the evaporating flask is adjustable
- Evaporating flask are lifted automatically
- Specialized motor and reasonable structure design ensures the evaporating flask running smoothly and steadily
Vacuum Rotary Evaporator Technical Parameter
| Model | R-3001 |
| Power Supply | 1~110V, 60Hz or 1~220V, 50/60Hz |
| Motor Power | 40 W |
| Working Environment | 5～35℃ |
| Water Bath | Temperature | Room Tem+5℃～95 ℃ |
| | Temp Accuracy | ±1 ℃ |
| | Size (mm) | φ250×130 |
| | Capacity | 6.5 L |
| | Heating Power | 1.3 KW |
| | Media | Water Only |
| | Temperature Control | Keypad Setting, Digital Display |
| | Material | Stainless Steel 304 |
| Condenser | Type | Vertical |
| | Cooling Surface | 1260 cm2 |
| Rotating Flask | Capacity | 500ml*1 + 1000ml*1 (standard) 2000ml (optional) |
| | Diameter | 24/40 |
| | Evaporating Speed | Water 15 ml/min; Ethanol 20 ml/min |
| | Rotating Speed | 10～280 rpm |
| | Speed Control | Knob Setting, Digital Display |
| Receiving Flask Capacity | 500ml*1 + 1000ml*1 (standard) 2000ml (optional) |
| Vacuum | Ultimate Vacuum | ≤ 399.9 Pa |
| | Vacuum Sealing | PTFE+Viton Gaskets (double sealing) |
| Lift | Lifting Function | Electrical Lifting |
| | Lifting Distance | 150mm |
| Safety Protection | Dry-run, Over-temp shut-off, Fuse protections |
| Dimension (mm) | 591W×389D×676H |
| Net Weight | 15 KG |
| Package | Wooden case |
