Ion Exchange Chromatography Machine Built-In Eluent Generator For Gradient Elution Control By Mobile APP
Profile

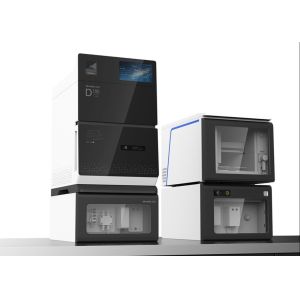

CIC-D180 is a new generation of intelligent ion chromatograph of SHINE. The simple pipeline layout and various component configurations make CIC-D180 flexible and changeable. It can be equipped with various detectors on demand to realize the combination technology easily. It can also be transformed into dual system and two-dimensional ion chromatograph, which is suitable for various application scenarios.
Ion Exchange Chromatography Machine Technology advantage
- High definition touch screen can display the flow path and running status of the instrument in real time, operate with one key and view at any time;
- The built-in eluent generator generates high-purity KOH and MSA eluent by electrolysis, which saves manual configuration time and completes more detection items by gradient elution;
- Built in gas-liquid separation system can filter out the bubbles in the flow path, enhance the stability;
- In the heating degassing unit, there is an integrated on-line vacuum chamber, which can remove the gas in the eluent on-line to make the experimental results more accurate.
- The intelligent alarm function can recognize the leaks.
- Using intelligent detector to detect the residual liquid in the eluent cartridge in real time.
- Clarity software can realize the detection and control of each component of the platform, and output the analysis results.
- Mobile APP can master every step of analysis in real time without manual attendance, making the work easy and efficient.
It can be combined with other brands of ICP-MS, on-line combustion ,etc.
IC Technical Parameter
| Pump | Maximum Pressure:42MPa
Pressure Display Accuracy:≤0.1MPa
Flow Rate Range:0.001~9.999mL/min
|
| Conductivity Detector | Cell Volume:≤0.8μL Detection Range: 0~50000μS/cm Detection Resolution: ≤0.0020nS/cm Electronic Noise:0.02nS Maximum Pressure:10.0MPa |
| Injector | Maximum Pressure:35MPa
External Diameter of The Tube:1/16" |
| Column Heater | Operating Temperature Range: 20 ~60℃(68~140℉)
Temperature Accuracy:±1℃
Temperature Stability:≤0.05℃/h |
| Other | Power Requirements:150W Dimensions(L*W*H*):500*360*550 (mm) Net Weight(KGS):32 Gross Weight(KGS):40 |
| Built-in Eluent Generator | Eluent Types : KOH/MSA
Eluent Concentration Range :0.1-100mM
Concentration Increment :0.1mM
Flow Rate Range:0.1-5.0mL/min |
Ion Exchange Chromatograph Solution
Application of Ion Chromatography in Food Safety Analysis
1. Nitrate and nitrite in food
The samples are pretreated according to GB/T 5009.33,and after protein precipitation and fat removal, the samples are extracted and purifified by corresponding methods. Using CIC-D100 ion chromatograph ,SH-AC-5 anion column, 10.0 mM NaOH eluent and bipolar pulse conductance method,under the recommended chromatographic conditions, the chromatogram is as follows.
2. Iodide and thiocyanate in dairy products
The milk powder samples are dissolved, mixed with 3% acetic acid and deionized water, fifiltered by 0.22μm microporous fifilter membrane and treated by IC-RP column.Using CIC-D100 ion chromatograph, SH-AC-11 anion column, 30 mM NaOH eluent and bipolar pulse conductance method, under the recommended chromatographic conditions, the chromatogram is as follows.
Ion Exchange Chromatograph
Paking
FAQ about Ion Exchange Chromatograph:
1. What technology does your suppressor use?
What we offer is self-regenerating electrolytic micro-membrane suppressor.
2. What software do you use?
We provide Clarity software which has English, German, French, Spanish, Russian and Chinese version.
3. How long is the warranty of instrument?
Instrument has 2 years, suppressor has 6 months and column has 3 months of warranty period.
4. Could I use your suppressor and column on my IC instrument?
Yes, absolutely. In addition, Eluent generator, autosampler and other consumables are also compatible!
5. Could I have a view on your instrument in Europe?
Yes, we have an EU DEMO CENTER located in France.
6. How long is the delivery time?
For instruments, it is between 3 to 4 weeks. For consumables, we always keep available in stock.
Company Profile
Qingdao Shenghan Chromatograph Technology Co., Ltd. (SHINE) is a high-tech enterprise specializing in R&D, production, sales and after-sales service of ion chromatography and related accessories. Established in 2002,SHINE has provided perfect solution for the users of more than 4000 different industries so far.
Authentication
Exhibition
Instrument commissioning and training
Customer visit
Add: No.151, Zhuzhou Road, Laoshan Disrict, Qingdao, Shandong, China
