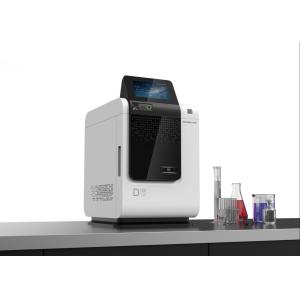

Chinese Ion Exchange Chromatography Machine PEEK Materil With Touch Screen
Profile
Chinese Ion Exchange Chromatography Machine PEEK materil Flow Path 0.001~9.999mL/min 42MPa
CIC-D150 ion chromatograph is designed for the intelligentization, which realizes the functions of remote control by mobile APP, timing startup and preheating, one-key intelligent maintenance, etc. it is more convenient to use and greatly improves the productivity and user experience of the laboratory.
Ion Exchange Chromatography Machine Technology advantage
Leakage alarm,the pump will stop automatically after 5 minutes if no treatment;
Auto-range to realize the simultaneous determination of 5ppb-100ppm concentration sample without setting the range;
A micro gas-liquid separator is set to remove the bubble from the eluent;
By timing startup and preheating function ,users can set the start-up and all parameters of the instrument in advance (the maximum setting is 24 hours);
Set "intelligent maintenance", the instrument can complete the flow path switch to the pure water path;
The mobile APP can remotely control the instrument on / off and observe the operation performance parameters of the instrument;
The large screen displays the operation parameters and status of the instrument.
It can be combined with other brands of ICP-MS, on-line combustion ,etc.
IC Technical Parameter
| Pump | Maximum Pressure:42MPa Pressure Display Accuracy:≤0.1MPa Flow Rate Range:0.001~9.999mL/min Injector Maximum Pressure:35MPa |
| Conductivity Detector | Cell Volume: ≤0.8μL Detection Range:0~45000μS/cm Baseline Noise:≤0.001μS Baseline Drift:≤0.001μS Detection Resolution: ≤0.0020nS/cm Electronic Noise:0.02nS Temperature Range:Room temperature+5~60℃(41 ~140℉) Maximum Pressure:10.0MPa |
| Other | Power Requirements:150W Dimensions(L*W*H*):336*650*458(mm) Net Weight(KGS):26 Gross Weight(KGS):32 |
Ion Exchange Chromatograph Solution
Application of Ion Chromatography in Food Safety Analysis
1. Nitrate and nitrite in food
The samples are pretreated according to GB/T 5009.33,and after protein precipitation and fat removal, the samples are extracted and purifified by corresponding methods. Using CIC-D150 ion chromatograph ,SH-AC-5 anion column, 10.0 mM NaOH eluent and bipolar pulse conductance method,under the recommended chromatographic conditions, the chromatogram is as follows.
2. Iodide and thiocyanate in dairy products
The milk powder samples are dissolved, mixed with 3% acetic acid and deionized water, fifiltered by 0.22μm microporous fifilter membrane and treated by IC-RP column.Using CIC-D150 ion chromatograph, SH-AC-11 anion column, 30 mM NaOH eluent and bipolar pulse conductance method, under the recommended chromatographic conditions, the chromatogram is as follows.
Ion Exchange Chromatograph
Paking
FAQ about Ion Exchange Chromatograph:
1. What technology does your suppressor use?
What we offer is self-regenerating electrolytic micro-membrane suppressor.
2. What software do you use?
We provide Clarity software which has English, German, French, Spanish, Russian and Chinese version.
3. How long is the warranty of instrument?
Instrument has 2 years, suppressor has 6 months and column has 3 months of warranty period.
4. Could I use your suppressor and column on my IC instrument?
Yes, absolutely. In addition, Eluent generator, autosampler and other consumables are also compatible!
5. Could I have a view on your instrument in Europe?
Yes, we have an EU DEMO CENTER located in France.
6. How long is the delivery time?
For instruments, it is between 3 to 4 weeks. For consumables, we always keep available in stock.
Customer applications
Company Profile
Qingdao Shenghan Chromatograph Technology Co., Ltd. (SHINE) is a high-tech enterprise specializing in R&D, production, sales and after-sales service of ion chromatography and related accessories. Established in 2002,SHINE has provided perfect solution for the users of more than 4000 different industries so far.
Authentication
Exhibition
Instrument commissioning and training
Customer visit
Add: No.151, Zhuzhou Road, Laoshan Disrict, Qingdao, Shandong, China
